Text

A Text is a graphic object used to create a text graphic instance, containing information such as the text's content, position, size, and font, for the rendering engine to draw and interact with.

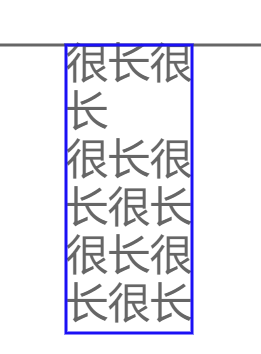

Example

import { Text } from '@visactor/vgraph';

const text = new Text({
    x: 50,
    y: 100,
    fontSize: 14,
    text: 'very long\nvery long very long very long very long very long very long',
    width: 50,
    height: 100,
    lineHeight: 16,
    textOverflow: 'clip',
    textBaseline: 'top',
});

Text Configuration

Field	Type	Description
text	string	The content of the text.
x	number	The x-coordinate of the text.
y	number	The y-coordinate of the text.
width	number	The maximum width of the text.
height	string \| object	The maximum height of the text.
textOverflow	'clip' \| 'ellipsis'	Text overflow. When the text content exceeds the width or height specified by `width` or `height`, overflow occurs. `clip` means to clip the overflowing text, and `ellipsis` means to use `...` to represent the overflowing text. The default value is `clip`. Refer to CSS text-overflow.
textAlign	'start' \| 'center' \| 'end' \| 'left' \| 'right'	The horizontal alignment of the text. If set to `start` or `left`, then `x` represents the left coordinate of the text. If set to `center`, then `x` represents the center x-coordinate of the text. If set to `end` or `right`, then `x` represents the right coordinate of the text. The default value is `start`. Refer to CSS text-align.
textBaseline	'top' \| 'hanging' \| 'middle' \| 'alphabetic' \| 'ideographic' \| 'bottom'	The vertical alignment of the text. The default value is `top`. If set to `top` or `hanging`, then `y` represents the top coordinate of the text. If set to `middle`, then `y` represents the center y-coordinate of the text. If set to `alphabetic`, `ideographic`, or `bottom`, then `y` represents the bottom coordinate of the text.
fontSize	number	The font size. The default value is 12.
lineHeight	number	The line height.
fontStyle	'normal' \| 'italic' \| 'oblique'	The font style. Refer to CSS font-style.
fontVariant	'normal' \| 'small-caps'	The font variant. Refer to CSS font-variant.
fontWeight	'normal' \| 'bold' \| 'bolder' \| 'lighter' \| number	The thickness of the font. Refer to CSS font-weight.
fontFamily	string	The font family. Refer to CSS font-family.

Common Configurations

The following are common configurations for all graphic objects:

Field	Type	Description
opacity	number	Opacity
fillStyle	string	Fill color
strokeStyle	string	Stroke color
lineWidth	number	Stroke width
lineDash	number \| number[]	Dash pattern, refer to CanvasRenderingContext2D.setLineDash()
shadowBlur	number	Shadow blur amount, refer to CanvasRenderingContext2D.shadowBlur
shadowColor	string	Shadow color
shadowOffsetX	number	Horizontal shadow offset, refer to CanvasRenderingContext2D.shadowOffsetX
shadowOffsetY	number	Vertical shadow offset, refer to CanvasRenderingContext2D.shadowOffsetY
clip	ShapeBase	Clipping shape. Sets the specified shape as the clipping path. The part within the clipping shape's path will be retained, and the rest will be culled. Refer to CanvasRenderingContext2D.clip()
cursor	string	The type of cursor when this shape gains focus. For details, refer to CSS Cursor

Note: Color strings currently support the following formats:

Type	Example	Description
rgb	`rgb(255, 255, 255)`	White represented in RGB mode
rgba	`rgba(255, 255, 255, 1.0)`	White represented in RGBA mode
hsl	`hsl(13, 100%, 10%)`	Color represented in HSL mode, equivalent to `rgb(56, 12, 0)`
hsla	`hsla(13, 100%, 10%, 0.4)`	Color represented in HSL mode, equivalent to `rgba(56, 12, 0, 0.4)`
hex	`#fff`	Pure color represented by a three-digit hexadecimal number, case-insensitive
hex	`#FF00FF`	Pure color represented by a six-digit hexadecimal number, case-insensitive
hex	`#3037ffff`	Color with transparency represented by an eight-digit hexadecimal number, case-insensitive
name	`cyan`	Color represented by its name
linear gradient	`l(0) 0:#fff 0.5:#7ec2f3 1:#1890ff`	Linear gradient, the expression is `l(deg) step1:color1 step2:color2 ...`, which means a linear gradient with a linear tilt angle of `deg`, and the colors are interpolated at `step1`, `step2`... with `color1`, `color2`...
radial gradient	`r(0.5,0.5,0) 0:#fff 0.5:#7ec2f3 1:#1890ff`	Radial gradient, the expression is `r(cx, cy, r0) r1:color1 r2:color2 ...`, which means a radial gradient centered at the relative coordinate `(cx, cy)` within the bounding box, with a starting radius `r0`, and the colors are interpolated at radii `r1`, `r2`... with `color1`, `color2`...
picture	`p(a)./pattern.png`	Image, the expression is `p(repeat)url`. When `repeat` is `a`, it means the background repeat mode is `repeat`; when it is `x`, it means `repeat-x`; when it is `y`, it means `repeat-y`; when it is `n`, it means `no-repeat`. The parameter `url` represents the image path. Refer to CSS background-repeat

Accessible Properties

Property	Type	Description
type	'text'	Shape type
capture	boolean	Whether it is captured by focus
animating	boolean	Whether it is an animation
destroyed	boolean	Whether it has been destroyed
parent	any	Parent shape node
