Pipeline - Reader Mode

PipelineReader is a process orchestration tool built with vgraph, commonly used for arranging workflows. It has been implemented in scenes like Dorado project management pipelines. This is a pure JS component, imported as follows:

import { PipelineReader } from '@visactor/vgraph';

const pipelineReader = new PipelineReader(options);

Configuration Options

Field	Type	Description
data	{ nodes: Record<string,unknown>[], edges: Record<string,unknown>[] }	Data in the graph. If empty, you can directly call pipelineEditor.initEmptyEditor().
container	string | HTMLDivElement	[Required] The pipeline container.
graphSize	number[]	[Required] The container size, in the format [width, height].
nodeSize	number[]	The node size, in the format [width, height].
layout	object	Layout settings.
layout.rankSep	number	The spacing between nodes in different columns.
layout.nodeSep	number	The spacing between nodes in the same column.
padding	number[]	The padding on four sides, in the format [top/bottom padding, left/right padding].
setDefaultNode	(nodeData: Record<string,unknown>) => Record<string,unknown>	Set the default node style, usage is the same as Graph's setDefaultNode.
setDefaultEdge	(edgeData: Record<string,unknown>) => Record<string,unknown>	Set the default edge style, usage is the same as Graph's setDefaultEdge.
setNodeStateStyles	(state: string, nodeData: Record<string,unknown>, node: Node)	Configure the state style based on the node's state, used with node.setState, usage is the same as Graph's setNodeStateStyles.
setEdgeStateStyles	(state: string, edgeData: Record<string,unknown>, edge: Edge)	Configure the state style based on the edge's state, used with edge.setState, usage is the same as Graph's setEdgeStateStyles.
onClickNode	(node: Node, e: GraphEvent) => void	The click event for a node.

Instance Methods

Instance Method	Return Value	Description
updateNode	(node: Node, configs: Record<string,any>) => void	Update node data.
focusNode	(node: Node) => void;	Move the node to the center of the viewport.
getGraph	Graph	Get the Graph instance corresponding to the solution.

Built-in Nodes

To meet the needs of more scenarios, pipelineReader does not specify node types, but provides recommended node registration methods for reuse. Users can also register nodes that better fit their business scenarios and set the type in the setDefaultNode configuration item to the name of the registered node. Recommended registration method:

import { registerPipelineReaderNode } from '@visactor/vgraph';
registerPipelineReaderNode(options);

Note:

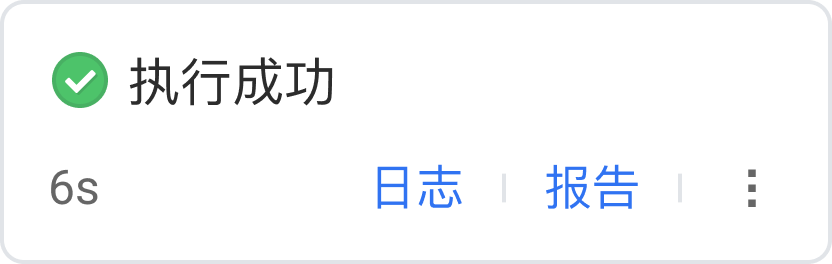

• The built-in node will lay out up to two actions from the actions field of the node to the bottom right corner of the node. When there are more than two actions, a "more" menu will be added to display more actions in conjunction with the Trigger component.

The configuration items for registering built-in nodes are as follows:

Field	Type	Description
moreIcon	string	The cdn of the image for the "more" node actions icon.
maxActionCount	number	The number of actions beyond which they will be hidden and the moreIcon will be displayed.

The node fields used by the built-in nodes are as follows:

Field	Type	Description
label	string	The node name.
imgUrl	string	The cdn of the image before the node name.
duration	string	The duration in the bottom left corner of the node.
actions	{ name: string, callback: (nodeData: Record<string,unknown>) => void; }[]	The actions in the bottom right corner of the node.
