Quadratic Bezier Curve (Quadratic)

A Quadratic Bezier Curve (Quadratic) is a graphic object used to create a quadratic Bezier curve graphic instance, containing information such as the curve's control points and arrows, for the rendering engine to draw and interact with.

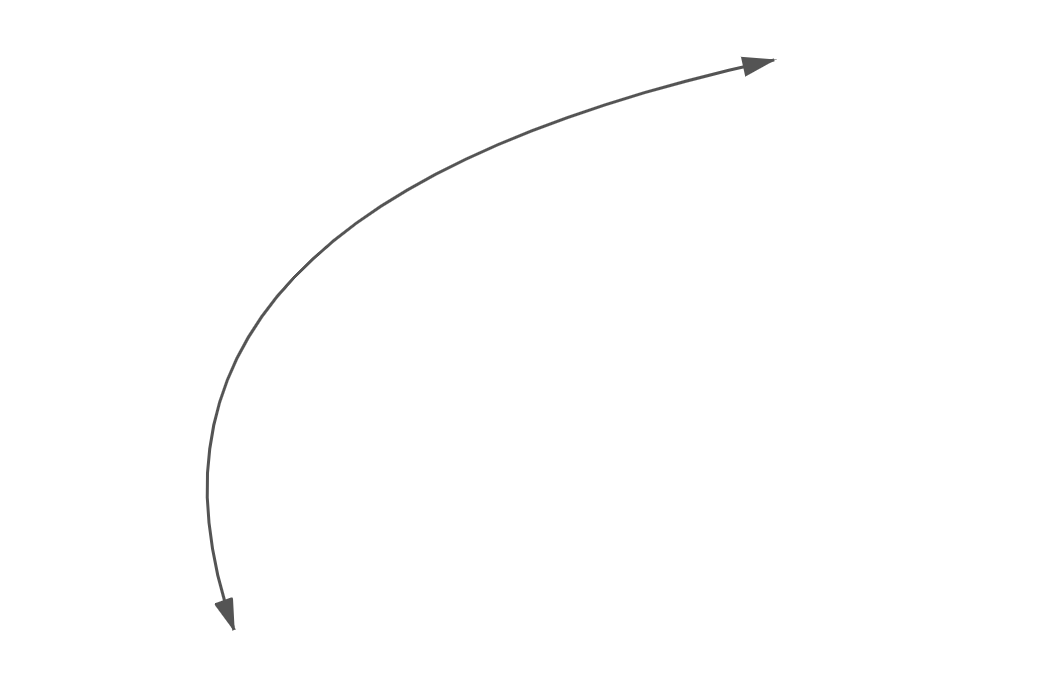

Example

import { Quadratic } from '@visactor/vgraph';

const quadratic = new Quadratic({
    points: [[250, 60], [20, 110], [70, 250]],
    strokeStyle: '#545454',
    lineWidth: 1,
    startArrow: true,
    endArrow: {
      type: 'default-round',
    },
    hitWidth: 4,
});

Quadratic Configuration

Field	Type	Description
points	number[][]	A 3x2 two-dimensional array, where each one-dimensional array represents a control point coordinate, for a total of three control points.
startArrow	ArrowType	Start arrow configuration item.
endArrow	ArrowType	End arrow configuration item.
hitWidth	number	The sensitive width for event triggering.

Note: When startArrow or endArrow is specified as undefined, null, or false, no arrow will be drawn. When specified as true, the default triangular arrow will be drawn. The arrow configuration item ArrowType is defined as follows:

type ArrowType = boolean | {
  type?: 'default' | 'default-round',
  width?: number,
  height?: number,
};

Field	Type	Description
type	string	Arrow type. `default` is the default triangular arrow, and `default-round` is a triangular arrow with rounded corners.
width	number	The wingspan width of the arrow.
height	number	The tangential height of the arrow at the endpoint.

Common Configurations

The following are common configurations for all graphic objects:

Field	Type	Description
opacity	number	Opacity
fillStyle	string	Fill color
strokeStyle	string	Stroke color
lineWidth	number	Stroke width
lineDash	number \| number[]	Dash pattern, refer to CanvasRenderingContext2D.setLineDash()
lineDashOffset	number \| number[]	Dash line starting offset, refer to CanvasRenderingContext2D.lineDashOffset
shadowBlur	number	Shadow blur amount, refer to CanvasRenderingContext2D.shadowBlur
shadowColor	string	Shadow color
shadowOffsetX	number	Horizontal shadow offset, refer to CanvasRenderingContext2D.shadowOffsetX
shadowOffsetY	number	Vertical shadow offset, refer to CanvasRenderingContext2D.shadowOffsetY
clip	ShapeBase	Clipping shape. Sets the specified shape as the clipping path. The part within the clipping shape's path will be retained, and the rest will be culled. Refer to CanvasRenderingContext2D.clip()
cursor	string	The type of cursor when this shape gains focus. For details, refer to CSS Cursor

Note: Color strings currently support the following formats:

Type	Example	Description
rgb	`rgb(255, 255, 255)`	White represented in RGB mode
rgba	`rgba(255, 255, 255, 1.0)`	White represented in RGBA mode
hsl	`hsl(13, 100%, 10%)`	Color represented in HSL mode, equivalent to `rgb(56, 12, 0)`
hsla	`hsla(13, 100%, 10%, 0.4)`	Color represented in HSL mode, equivalent to `rgba(56, 12, 0, 0.4)`
hex	`#fff`	Pure color represented by a three-digit hexadecimal number, case-insensitive
hex	`#FF00FF`	Pure color represented by a six-digit hexadecimal number, case-insensitive
hex	`#3037ffff`	Color with transparency represented by an eight-digit hexadecimal number, case-insensitive
name	`cyan`	Color represented by its name
linear gradient	`l(0) 0:#fff 0.5:#7ec2f3 1:#1890ff`	Linear gradient, the expression is `l(deg) step1:color1 step2:color2 ...`, which means a linear gradient with a linear tilt angle of `deg`, and the colors are interpolated at `step1`, `step2`... with `color1`, `color2`...
radial gradient	`r(0.5,0.5,0) 0:#fff 0.5:#7ec2f3 1:#1890ff`	Radial gradient, the expression is `r(cx, cy, r0) r1:color1 r2:color2 ...`, which means a radial gradient centered at the relative coordinate `(cx, cy)` within the bounding box, with a starting radius `r0`, and the colors are interpolated at radii `r1`, `r2`... with `color1`, `color2`...
picture	`p(a)./pattern.png`	Image, the expression is `p(repeat)url`. When `repeat` is `a`, it means the background repeat mode is `repeat`; when it is `x`, it means `repeat-x`; when it is `y`, it means `repeat-y`; when it is `n`, it means `no-repeat`. The parameter `url` represents the image path. Refer to CSS background-repeat

Accessible Properties

Property	Type	Description
type	'quadratic'	Shape type
capture	boolean	Whether it is captured by focus
animating	boolean	Whether it is an animation
destroyed	boolean	Whether it has been destroyed
parent	any	Parent shape node
